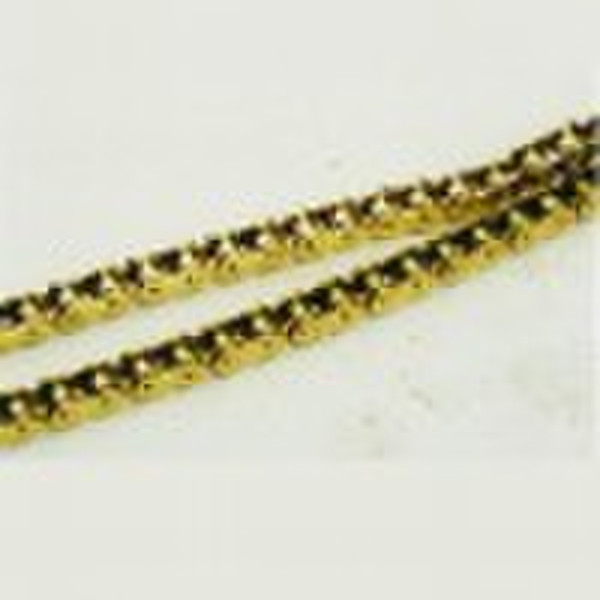

motorcycle chain

Motorcycle Chain For example: 415 The pitch is 12.70mm, roller diameter is 7.77mm, pin diameter is 3.96mm, width between inner plates is 4.88mm, pin length is 12.90mm, inner plate depth is 10.30mm, plate thickness is 1.40mm, ultimate tensile strength is 11.60KN, average tensile strength is 13.90KN, weight per meter is 0.40kg/m. 420 The pitch is 12.70mm, roller diameter is 7.77mm, pin diameter is 3.96mm, width between inner plates is 6.25mm, pin length is 14.75mm, inner plate depth is 12.00mm, plate thickness is 1.50mm, ultimate tensile strength is 16.00KN, average tensile strength is 18.50KN, weight per meter is 0.55kg/m. 428 The pitch is 12.70mm, roller diameter is 8.51mm, pin diameter is 4.45mm, width between inner plates is 7.75mm, pin length is 16.85mm, inner plate depth is 11.80mm, plate thickness is 1.60mm, ultimate tensile strength is 17.80KN, average tensile strength is 21.36KN, weight per meter is 0.69kg/m. 520H The pitch is 15.875mm, roller diameter is 10.16mm, pin diameter is 5.08mm, width between inner plates is 6.25mm, pin length is 17.30mm, inner plate depth is 15.00mm, plate thickness is 2.03mm, ultimate tensile strength is 26.50KN, average tensile strength is 31.80KN, weight per meter is 0.89kg/m.
